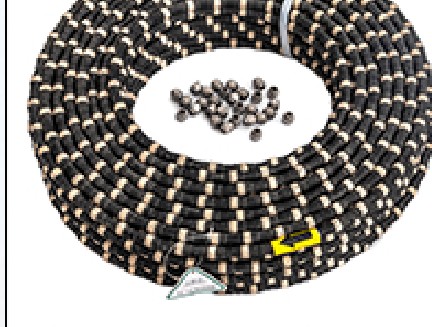

Slab production on multi-wire machines
Multi diamond wire is engineered for high-volume slab cutting on multi-wire saw machines. Tensioned across a frame, the wires cut a block into multiple slabs in one pass, so wire consistency — diameter, bead spacing and reinforcement — decides whether the line runs steadily or stops for wire changes.
In a multi-wire frame every wire works at the same time. Small differences in bead diameter or spacing show up as uneven slab thickness and short wire life, so the wire is specified as a matched set rather than as individual coils.
The MW series uses a BASF plastic reinforcement between the beads. Plastic keeps the beads evenly spaced and protects the cable at the bead seat, which is where wires normally fail.
Linear speed stays in the same band across soft, medium and hard stone; what changes is the down speed and the achievable cutting life. We set both against the stone you are actually processing rather than quoting a single figure.
Values we can state from real applications, with the basis for each one.
| FamilyMono & Multi Diamond Wire | Mono Diamond Wire | Multi Diamond WireThis page |
|---|---|---|
| Reference series | BC110P / BC105P / BC90P / BC85P / BC75P | MW53 / MW63 / MW73 / MW83 / MW88 |
| Bead specification | Ø11.0 / 10.5 / 9.0 / 8.5 / 7.5 × 6.0 mm | Ø5.3 / 6.3 / 7.3 / 8.0 / 9.0 mm |
| Beads per meter | 37 / 38 | 37 |
| Best for |
|
|
One row per attribute. A cell reading “Not stated” has no verified figure behind it — we confirm it against your job rather than assume a value. Machine dimensions, weight, wire speed and rail configuration are available on request.
Every specification above is confirmed against your material, machine and site conditions before an order is placed.
We specify against the job rather than the catalog. These are the facts that decide the answer for anything in Diamond Wire.
This product is specified as part of a set. These are the wire families and product groups it is normally combined with — final selection depends on the material, the machine and the site conditions.
Actual applications with the equipment, tooling and working conditions recorded.
Cutting speed 20–22 m²/hour, wire life 50–60 m² per meter. Balanced cutting behavior, and — the commercial point — improved cost control without relyi
All 18 wire saw machines still in service, including the original unit. A partnership that has run from the early Keentool days through to the current
A sustained partnership built on consistency rather than price — repeat supply across wire, cutting tools and grinding and polishing consumables.
How this equipment and tooling performs in real quarry and construction conditions.
Send the material, the machine and the working conditions. We will come back with a specification that suits the job — and say plainly where a limit exists.
